MEDICAL-GRADE MANUFACTURING

Fine Bugpin Round Liner Cartridges for Ultra-Detailed, Delicate Lines

At R&G Bio, we manufacture disposable tattoo needle cartridges for tattoo shops, distributors, and permanent makeup artists around the world.

Our Bugpin RL line uses slimmer needles than standard cartridges. The result is a lighter, more precise feel that a lot of artists prefer for fine lines and detailed work. Ink flow stays consistent even at the smaller gauge, and the needle doesn’t wobble — so lines come out clean from start to finish.

Every cartridge has a membrane to prevent backflow. Each one is individually sealed and EO gas sterilized, with batch numbers so you can trace every unit. Needles are 316L surgical stainless steel. Housings are medical-grade polymer. We manufacture the whole line in ISO Class 7 cleanrooms, and our quality system is certified to ISO 13485.

Delicate Line Control

Fine Diameter Needles

EO Sterilized

OEM/ODM Ready

Get Bulk Quote Talk To Our Expert Directly

Model Reference

1
For example – 0801RL

08 – Needle Diameter (Gauge)
01 – Needle Count
RL – Needle Configuration

2
Needle Diameter (Gauge)

08 = #8 (Bugpin, approx. 0.25 mm)
10 = #10 (Standard, approx. 0.30 mm)
12 = #12 (Standard, approx. 0.35 mm)

3
Needle Count

01 / 03 / 05 / 07 / 09 / 11 / 13 / 14 / 15 / 17 / 18 / 23 / 27

4
Needle Type

RL = Round Liner
RS = Round Shader
M1 = Magnum (Double Stack)
RM = Round Magnum

Tight RL

Hollow RL

Bugpin RL

0801RL

0809RL

0801RL

0803RL

0811RL

0803RL

0805RL

0814RL

0805RL

0807RL

1009RL

0807RL

1001RL

1011RL

0809RL

1003RL

1014RL

0811RL

1005RL

1209RL

0814RL

1007RL

1211RL

0818RL

1201RL

1214RL

1203RL

1205RL

1207RL

➡️ View Full Model List

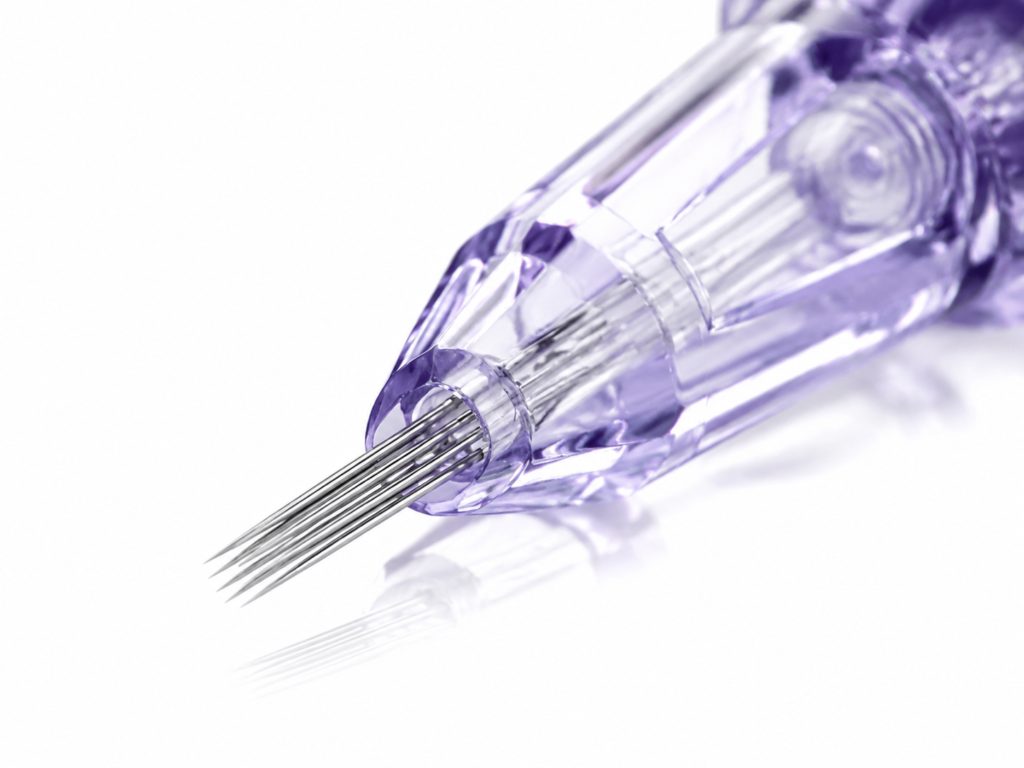

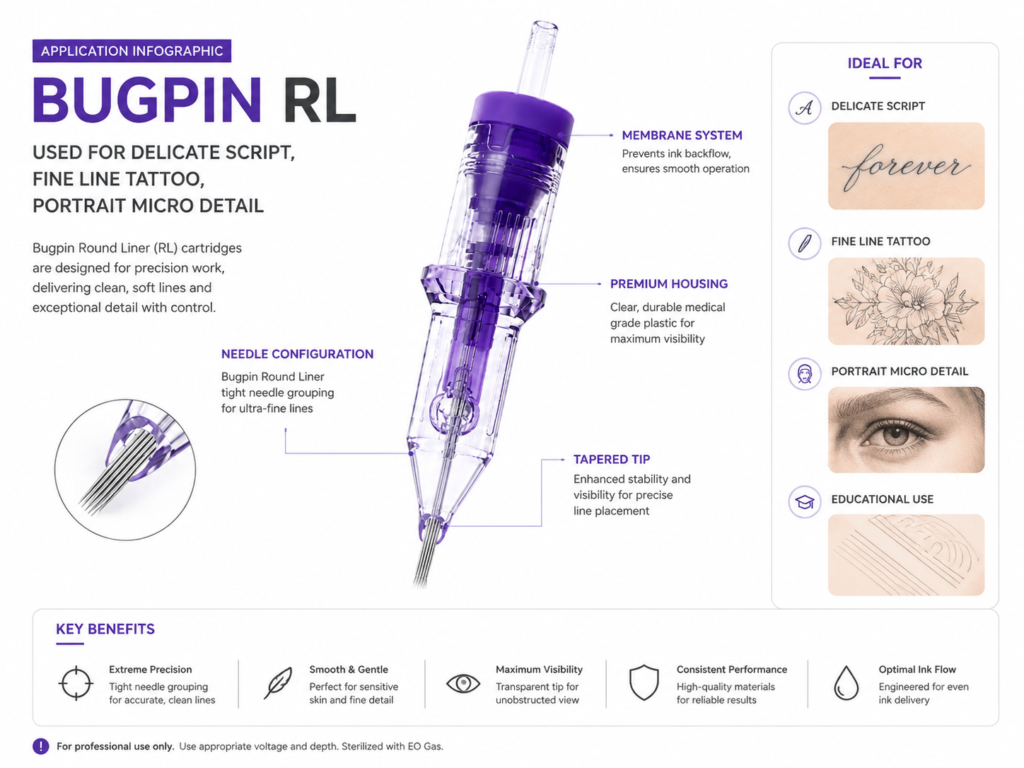

What Are Bugpin Round Liner Cartridges?

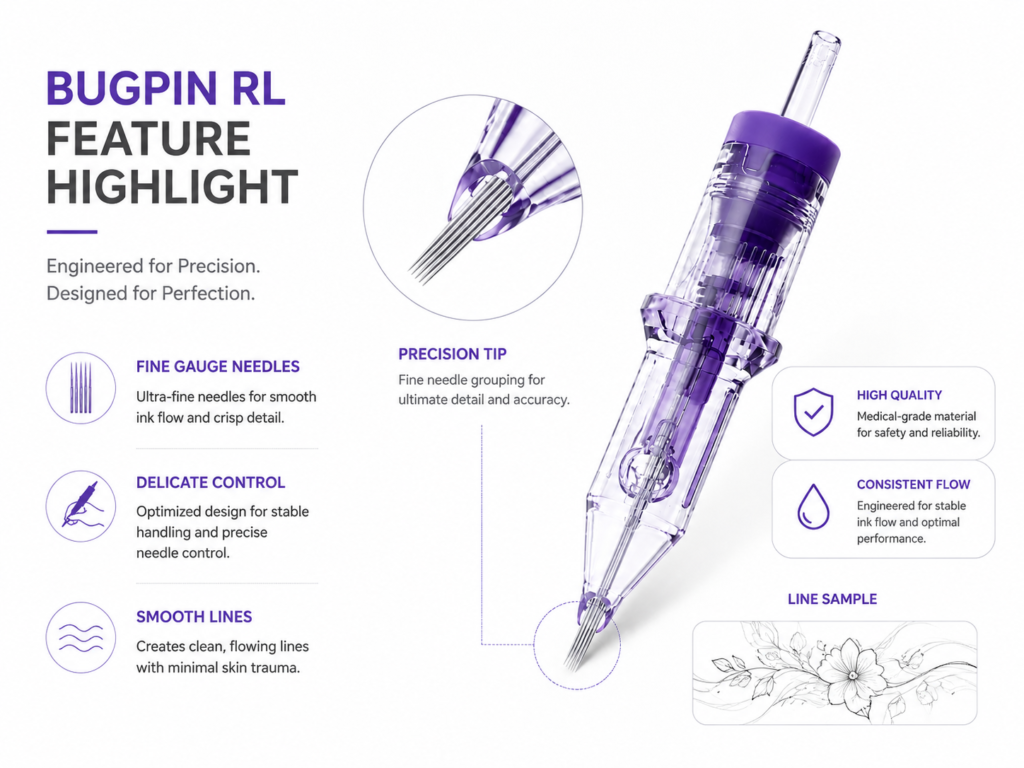

🔬 Needle Structure

Bugpin Round Liner cartridges are defined by their use of thinner needle diameters rather than a different grouping shape. The overall configuration remains circular, but each needle pin is finer, creating a more delicate contact point with the skin and allowing for more subtle ink deposition.

This finer structure results in smoother, lighter line work and increased control over detail. With less resistance during penetration, Bugpin RL cartridges provide a softer feel and enable more refined, intricate lines without the heavier visual weight of standard needle diameters.

Primary Uses & Applications

Ultra-Fine Outlining: Creating delicate outlines and subtle contours with a thinner needle profile.

Micro Detail Work: Handling tiny details, miniature elements, and refined artistic accents with precision.

Soft Script & Fine Lettering: Producing lighter, more delicate text and elegant stroke transitions.

Light Precision Lining: Delivering smooth, controlled lines for artists who want a softer visual finish.

Common Hollow RL Configurations

* 1RL – “1” indicates Needle Count

1RL

Ultra Fine Micro Detail

3RL

Delicate Fine Lines

5RL

Light Outlines for Soft Work

7RL

Medium Lines with Soft Visual Impact

9RL

Controlled Bold Lines with Fine Texture

Technical Specifications

Material

316L Medical Stainless Steel

Needle Diameter

08 (0.25mm) / #10 (0.30mm) / #12 (0.35mm)

Taper Length

Short (2.0–2.5mm) / Medium (3.5mm) / Long (5.5mm)

Safety Feature

Patented anti-backflow membrane

Sterilization

EO Gas, individually blister packed

Packaging

20 pcs/box (standard) / Custom OEM

Fine Outlining tattoo

Fine Lettering tattoo

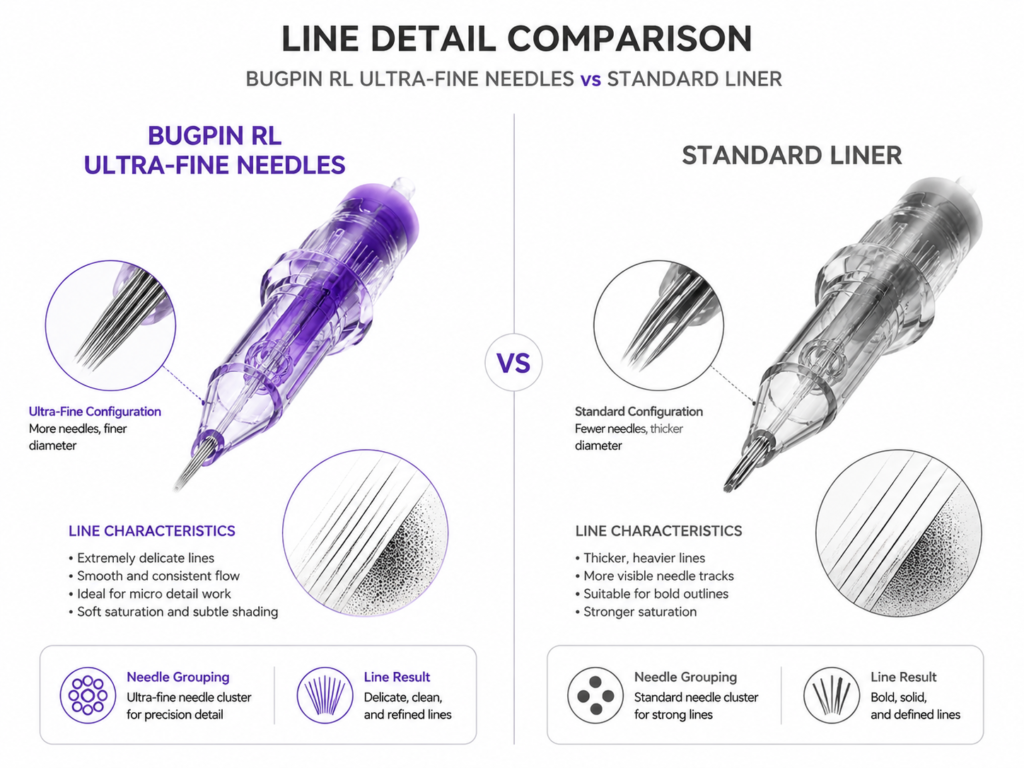

Hollow RL vs Tight RL vs Bugpin RL Comparison

Aspect

Tight RL

Hollow RL

Bugpin RL

Definition

Closely packed pins for maximum precision.

Open/hollow center for increased ink flow.

Defined by thinner needle diameter (#08 or #10).

Feel

Firm, compact, and highly controlled.

Looser internal layout; less resistance.

Slimmer pins; feels lighter and softer.

Gauge

Typically #08, #10, or #12.

Usually #12 (0.35mm).

Primarily #08 (0.25mm) or thinner.

Ink Flow

Restricted and focused; steady delivery.

High flow; supports bold, smooth movement.

Lighter deposition; easy to layer details.

Line Style

Sharp, clean, and well-defined.

Bold, thick, and high-impact.

Delicate, fine, and crisp.

Best For

Script, geometric, and technical linework.

Bold traditional work and thick outlines.

Ultra-detail, realism, and fine script.

Advantage

Maximum edge control and clarity.

Strong ink delivery without losing shape.

Reduces visual heaviness; great for micro-work.

Trade-off

Can feel too restricted if packed too tight.

Less suitable for ultra-fine precision.

Lacks the bold coverage of larger gauges.

Explore Different Cartridges

About R&G Bio

Built on Precision.
Trusted Globally.

01

Where Precision Meets Medical-Grade Standards

ISO 13485 certified facility with ISO Class 100,000 cleanrooms. 316L surgical steel, complete traceability.

02

End-to-End Manufacturing Control

From needle configuration to sterile packaging, every step is precision-controlled with automated assembly and batch tracking.

03

Meeting International Regulatory Standards

CE Mark, FDA Registered, KFDA Approved, ISO 13485, RoHS Compliant. Full documentation for global market entry.

04

Trusted Tattoo Needle Manufacturer Since 2009

15+ years serving 50+ countries with premium cartridge tattoo needles and flexible OEM/ODM solutions.

Premium Tattoo & PMU Supply
Play

Ready to discuss your custom tattoo needle requirements?

REQUEST A QUOTE

FAQs

“Bugpin” refers to the diameter of the individual needle wire. The term comes from entomology; these ultra-fine needles were originally used to pin insects for specimen displays. Tattoo artists adopted them because the thinner wire allows detail work that standard needles cannot match.

In our lineup, Bugpin means #10 gauge (0.30 mm) or #08 gauge (0.25 mm) needle wire. Standard needles use #12 gauge (0.35 mm). That 0.05 mm or 0.10 mm difference per needle is what gives Bugpin its signature precision.

Every needle in a Bugpin RL is thinner than its standard counterpart. That changes three things: the line weight is finer, the ink flow is more controlled, and the skin trauma per needle is reduced.

A 5RL Bugpin in #10 (0.30 mm) produces a line that reads closer to a 3RL standard in #12 (0.35 mm). But because there are still five needles in the grouping, the line deposits more evenly and heals more consistently than a true 3RL.

Use Bugpin RL when precision is the priority. Realism and portrait work, fine-line tattoos, detailed geometric patterns, delicate script, micro-details like hair strands or eyelashes.

Bugpin RL also excels in black-and-grey work where you want crisp lines that transition into soft shading. The controlled ink flow lets you build tones gradually without oversaturating.

Skip Bugpin for styles that demand bold, heavy saturation: American Traditional, Neo-Traditional, Tribal, large solid black fills. Standard #12 needles move more ink faster, and those styles need that speed.

Yes, especially with #08 super-bugpin at 0.25 mm. Each needle creates a smaller puncture, which means less tissue disruption per strike. Clients with sensitive or thin skin often heal better with Bugpin.

One caveat: Bugpin needles are thinner, so more of them fit in the same space. A tight Bugpin grouping concentrates more needles in a small area. Excessive pressure or too many passes can still overwork the skin. Light touch, deliberate movement.

Long taper (5.5 mm) is the standard pairing. The combination of thin wire and a long, sharp point creates minimal resistance entering the skin. Cleaner entries, less trauma, lines that heal sharper.

Medium taper (3.5 mm) works if you want slightly more ink per pass with Bugpin diameters. It sits between the precision of long taper and the saturation of short taper.

Bugpin RL comes in #08 (0.25 mm) and #10 (0.30 mm), with counts from 1RL to 14RL. The 3RL and 5RL in #10 are our best-sellers for general fine-line work.

For maximum detail, 1RL in #08 is the finest cartridge we make. For Bugpin precision with bolder line weight, 7RL and 9RL in #10 deliver density without losing that controlled quality.

CE Mark, FDA Registered, KFDA Approved, ISO 13485, RoHS Compliant. We ship the paperwork you need for wherever you’re working.

Private labeling, custom needle setups, OEM/ODM. Drop us a line and tell us what you need.
