Super Tight Liner Tattoo Cartridges for Ultra-Fine Lines
R&G Bio manufactures super tight liner tattoo cartridges for fine-line specialists, distributors and private-label brands — the thinnest, crispest line a cartridge can pull, with full control over ink spread.
The needles are soldered even closer than a standard round liner, forming a smaller, sharper point. Paired with a long taper, the super tight liner releases ink slowly and evenly — no blowout, no feathering, just clean hairline strokes for fine line, micro detail, lettering and stipple work. Sizes 1RL–9RL in #08, #10 and #12.
Every cartridge is EO gas sterilized, batch-coded for full traceability, and produced in ISO Class 7 cleanrooms under an ISO 13485 quality system. Review our certifications and compliance documents and see how we manufacture before you place a bulk order.
We support full OEM/ODM programs — housing colors, private labeling and custom packaging built around your brand, with factory-direct MOQs and tiered wholesale pricing.
Model Reference
For example – 0801STL
08 – Needle Diameter (Gauge)
01 – Needle Count
STL – Needle Configuration
Needle Diameter (Gauge)
08 = #08 (Standard, approx. 0.25 mm)
10 = #10 (Standard, approx. 0.30 mm)
12 = #12 (Standard, approx. 0.35 mm)
Needle Count
01 / 03 / 05 / 07 / 09
Needle Type
RL = Round Liner
RS = Round Shader
M1 = Magnum (Double Stack)
RM = Round Magnum
CM = Curved Magnum
F = Flat Shader
RLT = Textured Round Liner
TRL = Turbo Round Liner
STL = Super Tight Liner
#08 SERIES · 0.25MM BUGPIN — THE FINEST SUPER TIGHT LINES
|
MODEL |
GAUGE |
TAPER |
NEEDLE COUNT |
MEMBRANE |
STERILIZATION |
FIT |
TYPICAL USE |
|---|---|---|---|---|---|---|---|
|
0801STL |
#08 · 0.25mm |
Customizable |
1 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
Single-needle hairline work, micro tattoos, ultra-fine script |
|
0803STL |
#08 · 0.25mm |
Customizable |
3 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
Fine line outlines, tiny lettering, delicate floral details |
|
0805STL |
#08 · 0.25mm |
Customizable |
5 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
Fine outlines with stability, ornamental and geometric lines |
|
0807STL |
#08 · 0.25mm |
Customizable |
7 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
Crisp medium outlines, detailed illustrative work |
#10 SERIES · 0.30MM STANDARD — THE EVERYDAY SUPER TIGHT RANGE
|
MODEL |
GAUGE |
TAPER |
NEEDLE COUNT |
MEMBRANE |
STERILIZATION |
FIT |
TYPICAL USE |
|---|---|---|---|---|---|---|---|
|
1001STL |
#10 · 0.30mm |
Customizable |
1 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
Ultra-fine single lines, realism details, hair strokes |
|
1003STL |
#10 · 0.30mm |
Customizable |
3 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
Fine line tattoos, small script, stipple shading |
|
1005STL |
#10 · 0.30mm |
Customizable |
5 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
Clean fine-to-medium outlines, lettering and dotwork |
|
1007STL |
#10 · 0.30mm |
Customizable |
7 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
Controlled medium outlines with sharp edges |
|
1009STL |
#10 · 0.30mm |
Customizable |
9 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
Medium-bold outlines that must stay crisp at the edges |
#12 SERIES · 0.35MM STANDARD — SHARPER EDGES ON BOLDER LINES
|
MODEL |
GAUGE |
TAPER |
NEEDLE COUNT |
MEMBRANE |
STERILIZATION |
FIT |
TYPICAL USE |
|---|---|---|---|---|---|---|---|
|
1201STL |
#12 · 0.35mm |
Customizable |
1 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
Strong single lines, whip details, fine stipple |
|
1203STL |
#12 · 0.35mm |
Customizable |
3 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
Fine outlines with slightly more presence, script work |
|
1205STL |
#12 · 0.35mm |
Customizable |
5 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
Everyday crisp outlines, neo-traditional detail lines |
|
1207STL |
#12 · 0.35mm |
Customizable |
7 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
Bold-but-sharp outlines, large lettering |
|
1209STL |
#12 · 0.35mm |
Customizable |
9 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
The widest super tight line — bold outlines with clean edges |
Built Like a Medical Device, Priced for Wholesale
Super tight groupings leave no room for error — a few microns of drift ruins the point. Here is how we keep every cartridge identical.
01 Ultra-Tight Machine Soldering
The needles are drawn closer together than a standard RL and soldered by machine, so the point forms the same way on every unit. Tight tolerances here are what keep lines hairline-thin and consistent across a whole batch.
02 Safety Membrane System
A medical-grade elastic membrane sits inside every cartridge. It keeps needle tension steady through long, slow fine line sessions and stops ink and body fluids from flowing back into the grip and machine.
03 Polished 304 Long Taper Tips
We use Japanese-imported 304 surgical steel, ground to a long taper and mirror-polished. The fine, smooth point enters the skin with less resistance — less swelling, less trauma, and better visibility while you work.
04 Medical-Grade Housing
The shell is medical-grade polymer with a slim clear tip, so artists see the needle and ink at the working point. Low-friction inner walls keep the single grouping stable. The standard fitting works with most rotary machines and cartridge grips.
05 EO Gas Sterilization
Every cartridge is sealed in its own blister pack and sterilized with EO gas. Our sterilization process is validated under ISO 11135, with batch records kept for full traceability.
06 Two-Stage Quality Control
Every unit passes 100% visual inspection on the line. Then 30% of each batch is checked again under 100x microscopy for point alignment, solder quality, and grouping diameter — critical for super tight needles.
Why Tighter Means Cleaner
In any round liner, the line width follows the grouping diameter. Pull the needles closer together and two things happen: the point gets smaller, and less ink enters the skin per pass. That is why super tight liners hold a sharp edge where standard liners would feather out — and why fine line artists can pull thin lines without cranking up voltage or making extra passes. The trade-off is speed: these needles reward a slower, steadier hand. For bold, fast outlines, a standard RL is still the better tool.
Where Super Tight Liners Work Best
One job: the finest, most controlled line possible. If the design lives or dies by detail, this is the needle.
Fine Line & Minimalist
The home ground of the super tight liner. Thin, even strokes that stay legible as they heal — no spread, no blurred edges.
Micro Script & Lettering
Small text punishes any ink spread — letters close up and turn unreadable. The tight point keeps every stroke separated and sharp.
Realism Micro Detail
Hair strands, eyelashes, cracks in stone — the secondary lines that give realism its depth. 1RL and 3RL super tights finish what bigger liners start.
Stipple & Dotwork
Tighter grouping means tighter dots. For stipple shading and dotwork gradients, super tights place each dot exactly where the artist intends.
Small Group, Fine Bold Lines. Big Group, Maximum Weight.
Needle count sets the line width. Texture sets the density. Match both to the job — that is the whole logic.
1STL
Hairlines, micro detail, single-needle style
3STL
Fine line, tiny script, stipple
5STL
Fine outlines with stability, lettering
7STL – 9STL
Crisp medium-bold outlines

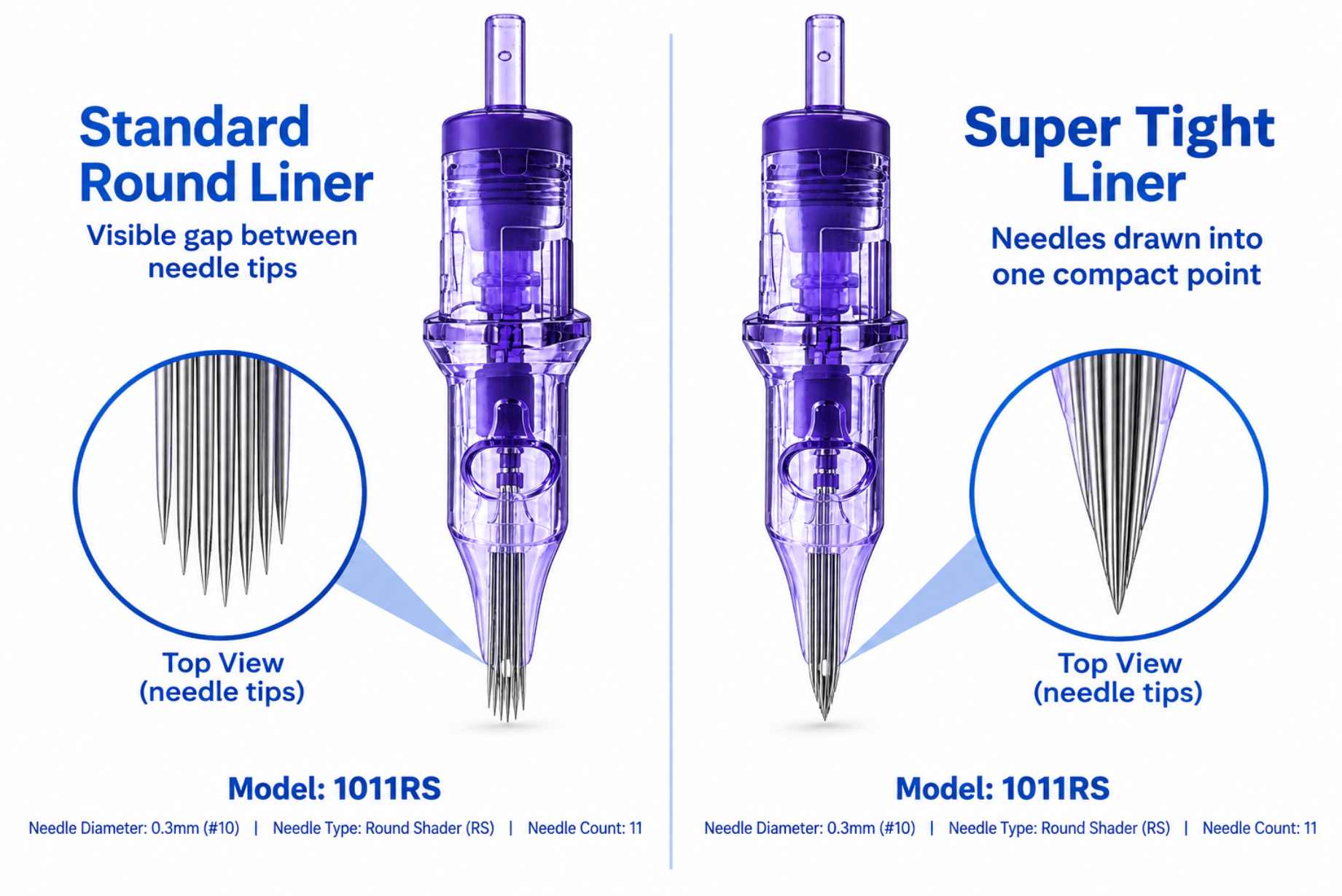

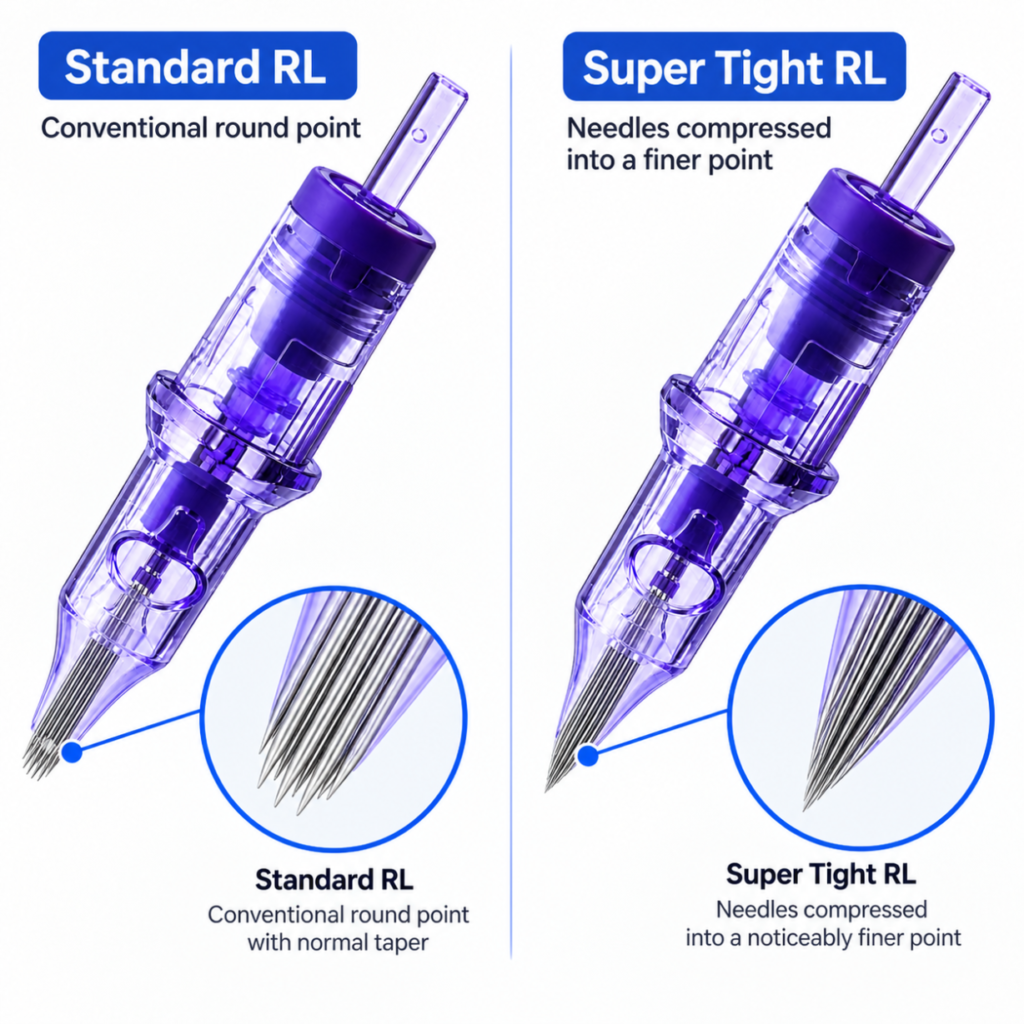

Super Tight Liner vs Standard round liner
Same round grouping, same fit. The difference is how close the needles sit — and how much ink each pass delivers.
|
SUPER TIGHT RL |
STANDARD RL |
|
|---|---|---|
|
Grouping |
Needles drawn extra close, ultra-fine point |
Tight, standard point |
|
Ink per Pass |
Low — slow, controlled release |
Medium — steady standard flow |
|
Line Result |
Thinner, sharper, minimal spread |
Bolder, faster coverage |
|
Skin Trauma |
Very low with long taper |
Low with proper technique |
|
Working Speed |
Slower, rewards a steady hand |
Faster, more forgiving |
|
Best For |
Fine line, micro detail, script, stipple |
Everyday outlines, bold linework |
Our Certifications
R&G Bio is an integrated manufacturer with verified FDA registration, ISO 13485 / ISO 9001 certification and EU RoHS compliance — the documentation your market actually requires.
Wholesale & OEM Programs
Factory-direct supply with full batch traceability. Tell us your sizes and target volume — we reply within 12 hours with a full quotation.
MOQ from 1,000 pcs
Standard sizes start low; mixed sizes allowed in one order.
Tiered Factory Pricing
The more you take, the lower the unit cost. Full price ladder with every quotation.
Fast Lead Time
Standard sizes ship from running production; OEM timelines confirmed with your quote.
Private Label & OEM
Your brand, built on our production lines — in-house design and engineering support.
Qualified B2B buyers can request a free sample kit before committing to an order.
