Textured Round Liner Tattoo Cartridges for Bold, Saturated Lines
R&G Bio manufactures textured round liner tattoo cartridges for brands, distributors and studios serving traditional, blackwork and dotwork artists — more ink per pass, fewer dips, factory-direct consistency.
Tiny grooves on the needle taper hold extra ink, so textured needles carry more pigment per dip and lay down bolder, more saturated lines with fewer passes — while the points stay sharp and precision-ground. Sizes 3TRL–18TRL in #10 and #12 gauge.
Every cartridge is EO gas sterilized, batch-coded for full traceability, and produced in ISO Class 7 cleanrooms under an ISO 13485 quality system. Review our certifications and compliance documents and see how we manufacture before you place a bulk order.
We support full OEM/ODM programs — housing colors, private labeling and custom packaging built around your brand, with factory-direct MOQs and tiered wholesale pricing.
Model Reference
For example – 1005F
10 – Needle Diameter (Gauge)
05 – Needle Count
F – Needle Configuration
Needle Diameter (Gauge)
10 = #10 (Standard, approx. 0.30 mm)
12 = #12 (Standard, approx. 0.35 mm)
Needle Count
05 / 07 / 09 / 11 / 13 / 15
Needle Type
RL = Round Liner
RS = Round Shader
M1 = Magnum (Double Stack)
RM = Round Magnum
CM = Curved Magnum
F = Flat Shader
RLT = Textured Round Liner
TRL = Turbo Round Liner
STL = Super Tight Liner
#10 SERIES · 0.30MM — MEDIUM LINE WEIGHT, FINER CONTROL
|
MODEL (TEXTURED) |
GAUGE |
TAPER |
NEEDLE COUNT |
MEMBRANE |
STERILIZATION |
FIT |
TYPICAL USE |
|---|---|---|---|---|---|---|---|
|
1003RLT |
#10 · 0.30mm |
Short 0.7mm |
3 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
Fine bold lines, small traditional details, dotwork builds |
|
1005RLT |
#10 · 0.30mm |
Short 0.7mm |
5 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
Standard outlines with extra saturation, small lettering |
|
1007RLT |
#10 · 0.30mm |
Short 0.7mm |
7 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
Bold outlines, portrait outlines, medium lettering |
|
1009RLT |
#10 · 0.30mm |
Short 0.7mm |
9 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
Heavy outlines, geometric work, dense stipple shading |
|
1011RLT |
#10 · 0.30mm |
Short 0.7mm |
11 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
Extra-bold outlines, whip shading, dark accents |
|
1014RLT |
#10 · 0.30mm |
Short 0.7mm |
14 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
Maximum #10 line weight, large bold work |
#12 SERIES · 0.35MM — THE TRADITIONAL WORKHORSE, MAXIMUM SATURATION
|
MODEL (TEXTURED) |
GAUGE |
TAPER |
NEEDLE COUNT |
MEMBRANE |
STERILIZATION |
FIT |
TYPICAL USE |
|
1203RLT |
#12 · 0.35mm |
Short 0.7mm |
3 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
Bold fine lines, dotwork and stipple detail |
|
1205RLT |
#12 · 0.35mm |
Short 0.7mm |
5 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
Classic traditional outlines, saturated single-pass lines |
|
1207RLT |
#12 · 0.35mm |
Short 0.7mm |
7 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
Bold outlines for traditional and Japanese work |
|
1209RLT |
#12 · 0.35mm |
Short 0.7mm |
9 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
Heavy outlines, tribal lines, large lettering |
|
1211RLT |
#12 · 0.35mm |
Short 0.7mm |
11 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
Extra-bold outlines, banners, heavy blackwork lines |
|
1214RLT |
#12 · 0.35mm |
Short 0.7mm |
14 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
Maximum-density lines, large-scale traditional pieces |
|
1218RLT |
#12 · 0.35mm |
Short 0.7mm |
18 |
Yes |
EO Gas · ISO 11135 |
Universal cartridge grip |
The heaviest line weight — big tribal and blackout linework |
Built Like a Medical Device, Priced for Wholesale
Texture only works when it is controlled. Groove depth, point sharpness, and grouping alignment decide whether a textured liner performs or drags. Here is how we control all three.
01 Safety Membrane System
A medical-grade elastic membrane sits inside every cartridge. It keeps needle tension steady during long sessions and stops ink and body fluids from flowing back into the grip and machine. No backflow, no cross-contamination.
02 Micro-Textured Tapers, Sharp Points
We grind the texture into the taper on purpose — controlled micro-grooves, never random roughness. The needle point itself stays sharp and precision-finished, so penetration stays clean while the shaft carries the extra ink.
03 Medical-Grade Housing
The shell is medical-grade polymer with a clear tip. Artists see the ink load while they work. The body has a non-slip grip design, and the standard fitting works with most rotary machines and cartridge grips on the market.C
04 EO Gas Sterilization
Every cartridge is sealed in its own blister pack and sterilized with EO gas. Our sterilization process is validated under ISO 11135, with batch records kept for full traceability.
05 Two-Stage Quality Control
Every unit passes 100% visual inspection on the line. Then 30% of each batch is checked again under 100x microscopy for groove consistency, point sharpness, and grouping alignment. Rough or dull needles never ship.
How Texture Holds More Ink?
A magnum spreads needles across two rows. A flat shader puts them all on one line. That single edge works almost like a blade: it cuts a clean border, fills corners without overflow, and lays down dense, even saturation along the full width of the row. Artists rotate the wrist to work with the flat side for fills, or ride the edge for sharp detail. That is why flat shaders stay in every blackwork, geometric, and traditional artist’s setup — no other configuration gives this level of edge control.
Where Textured Liners Work Best
One series, four core jobs. If the work needs dense, saturated marks in few passes, this is the needle.
Traditional & Neo-Traditional
“Bold will hold.” Textured liners push dense pigment in one pass, so classic outlines stay dark and age well. The go-to choice for old-school and neo-traditional line work.
Dotwork & Stipple
Every dot lands darker and more consistent. The textured surface feeds ink steadily, so stipple gradients and pepper shading build faster with fewer touch-ups.
High-Saturation Black Lines
Lettering, tribal, banners, and heavy blackwork outlines. Large textured groupings like 11TRL to 18TRL lay down maximum-density black lines that stay solid after healing.
Whip Shading & Dark Accents
Fast, punchy whip shading and dense dark accents in black & grey pieces. The extra ink load makes each flick of the needle count — ideal for artists with a confident hand.

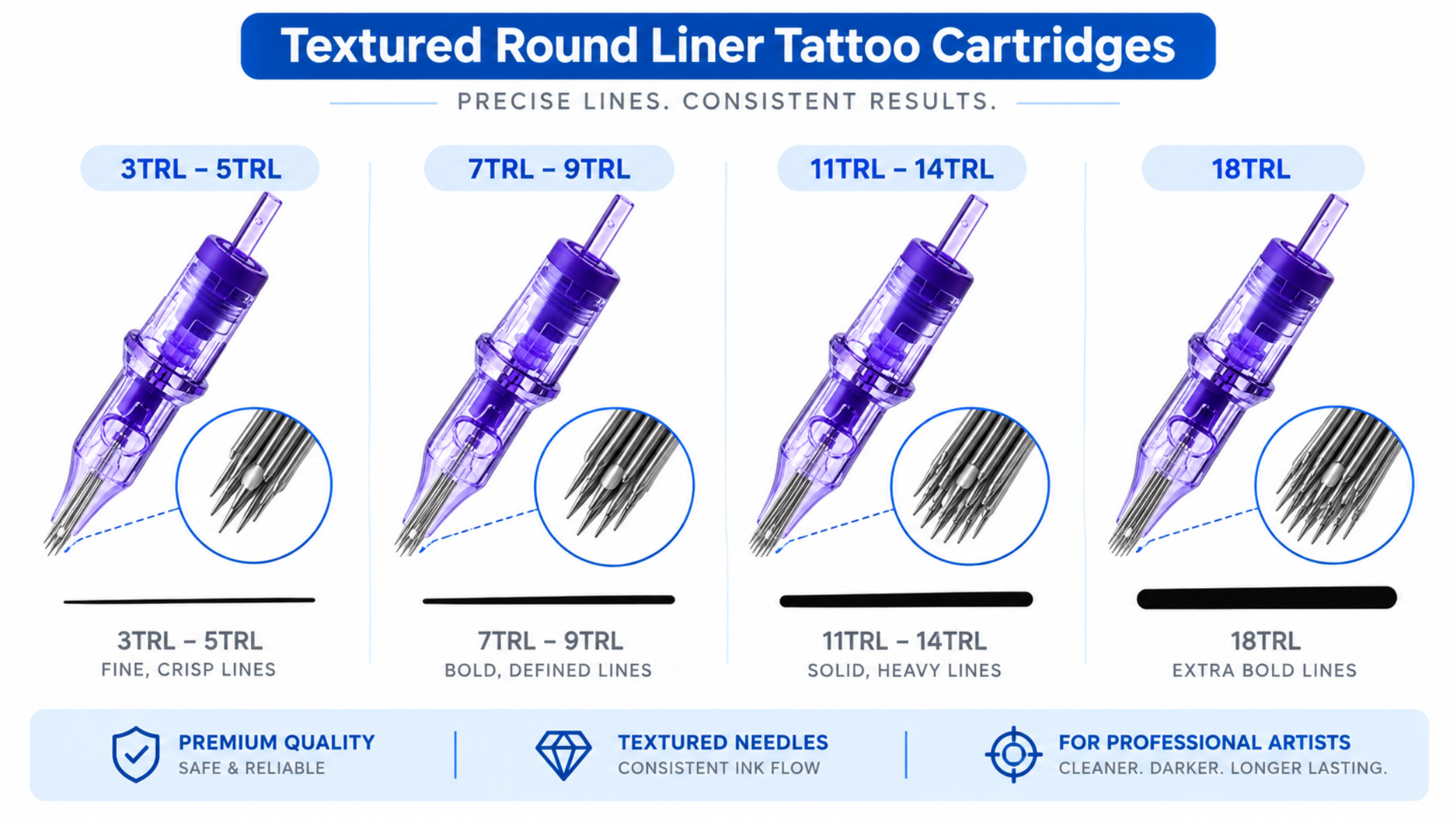

Small Group, Fine Bold Lines. Big Group, Maximum Weight.
Needle count sets the line width. Texture sets the density. Match both to the job — that is the whole logic.
3TRL – 5TRL
Fine bold lines, dotwork, small details
7TRL – 9TRL
Everyday bold outlines, lettering
11TRL – 14TRL
Heavy traditional lines, banners
18TRL
Maximum line weight, blackout linework

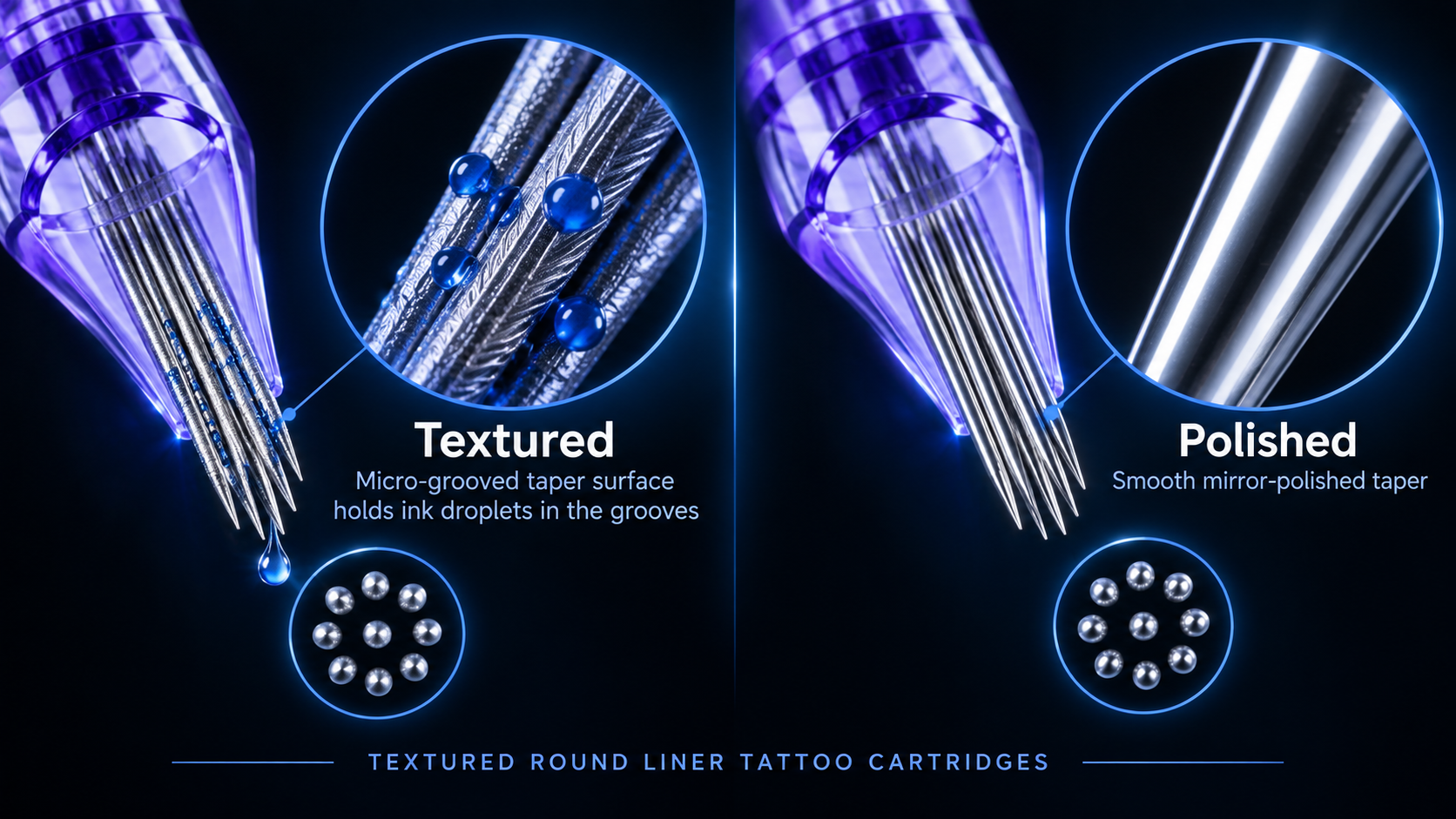

Textured vs Standard (Polished) Liners
Same grouping, same gauge — different surface finish. That one change controls ink load, needle drag, and which styles the liner serves best.
|
TEXTURED (TRL) |
STANDARD POLISHED (RL) |
|
|---|---|---|
|
Surface Finish |
Micro-grooved taper, made on purpose |
Mirror-polished taper |
|
Ink Load per Dip |
High — grooves trap and hold ink |
Standard — ink slides off faster |
|
Re-Dip Frequency |
Fewer dips, longer runs |
More frequent dips |
|
Needle Drag |
Slightly higher resistance |
Lowest, smoothest glide |
|
Saturation per Pass |
Heavy — single-pass friendly |
Moderate — builds in layers |
|
Skin Trauma |
Slightly higher — use fewer passes |
Lowest per pass |
|
Best Styles |
Traditional, dotwork, heavy black, bold packing |
Fine line, realism, multi-pass blending |
Our Certifications
R&G Bio is an integrated manufacturer with verified FDA registration, ISO 13485 / ISO 9001 certification and EU RoHS compliance — the documentation your market actually requires.
Wholesale & OEM Programs
Factory-direct supply with full batch traceability. Tell us your sizes and target volume — we reply within 12 hours with a full quotation.
MOQ from 1,000 pcs
Standard sizes start low; mixed sizes allowed in one order.
Tiered Factory Pricing
The more you take, the lower the unit cost. Full price ladder with every quotation.
Fast Lead Time
Standard sizes ship from running production; OEM timelines confirmed with your quote.
Private Label & OEM
Your brand, built on our production lines — in-house design and engineering support.
Qualified B2B buyers can request a free sample kit before committing to an order.
